Model Number
C61351M
Model Name

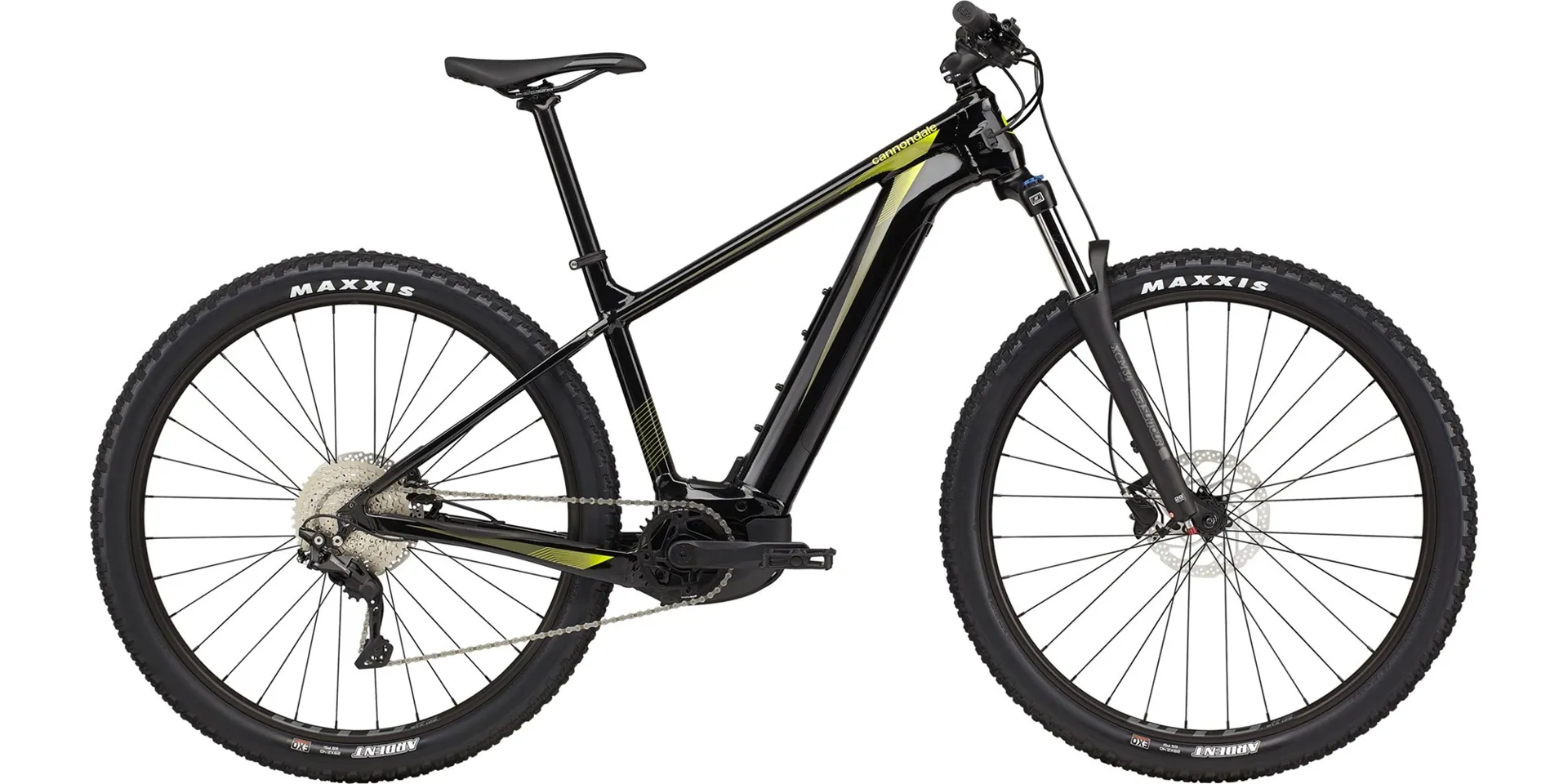

Trail Neo 3
Frame
SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts
Fork
SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset
Rims
WTB STX i25 TCS, 32h, tubeless ready
Hubs
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT400, 12x148mm thru-axle
Spokes
DT Swiss Champion
Tires
Maxxis Ardent, 29 x 2.4", Wire 60TPI Exo
Crank
FSA Bosch E-Bike w/ custom Ai offset, 34T
Bottom Bracket
Null
Chain
Shimano HG54, 10-Speed
Rear Cogs
Shimano Deore, 11-42, 10-Speed
Front Derailleur
Null
Rear Derailleur
Shimano Deore M4100
Shifters
Shimano Deore M4100, 10-speed
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Fabric Funguy
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Headset
Integrated Sealed Bearing, Tapered
Brakes
Shimano MT200 hydraulic disc, 180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
E-Bike Display
Bosch Purion
E-Bike Battery
Bosch Powertube 500Wh
E-Bike Charger
Bosch 4A
E-Bike Drive Unit
Bosch Performance Line CX
Saddle
Cannondale Ergo XC
Seatpost
Cannondale 4, 6061 Alloy, 31.6 x 350mm
Speeds
10
Extras
Pre-installed light cables
