TERN HSD S00 with Bosch Performance Line Motor in Dark Blue

Season:2024

Brand:Tern

Code:AVCHSDS0024BLUE

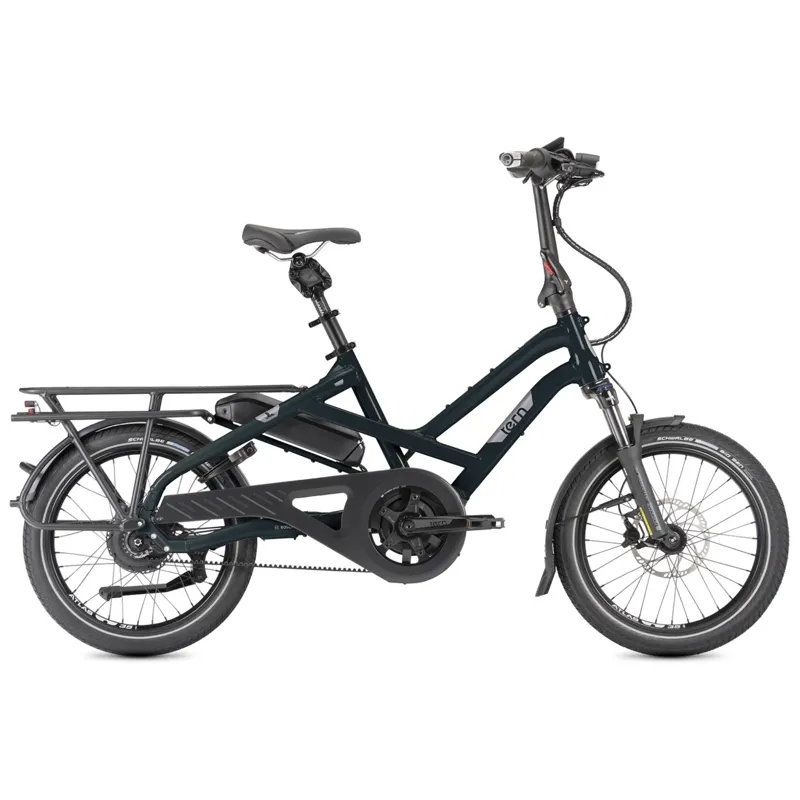

Please note, some images of the HSD S00 in the Dark Sage colour option are shown purely to illustrate features of this bike, the colour of this bike is Dark Blue as per the first shown image.


Mighty But Mini

The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.


What makes it an S00?

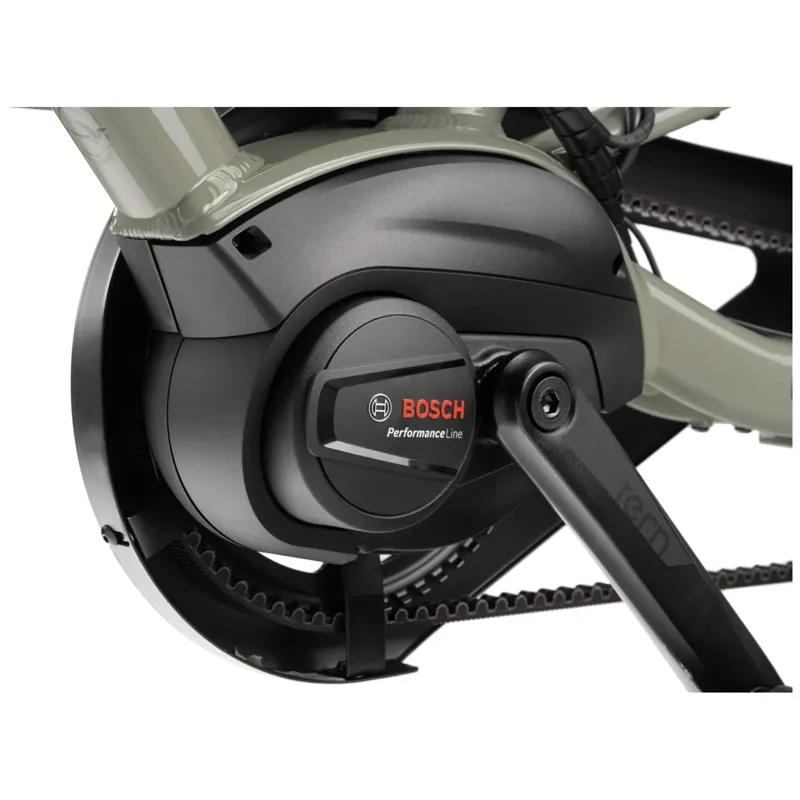

  • Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedalling power by up to 340%
  • Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
  • Kiox 300 colour display that automatically activates eBike Lock when removed from the bike
  • Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
  • Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter

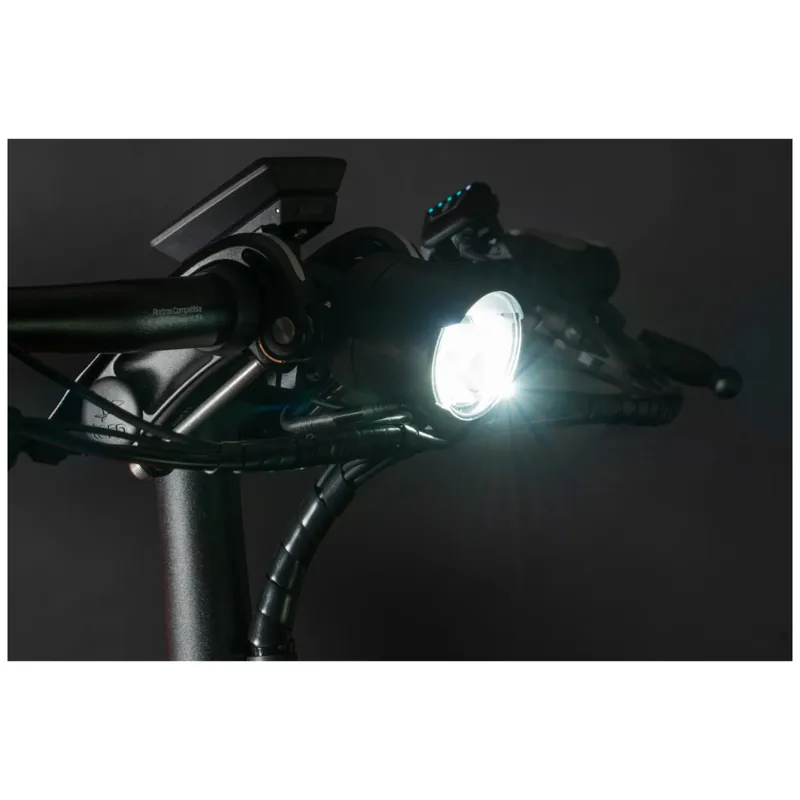

  • Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
  • Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights

  • Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customise riding modes, view bike information, connect to dealers, and more!
  • Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Technical Information
    • GENERAL INFO
    • SPEEDS:
      ∞
    • WEIGHT:
      29.4 kg (64.8 lb)
    • GEAR INCHES:
      28" - 106" (2.23 - 8.47 m)

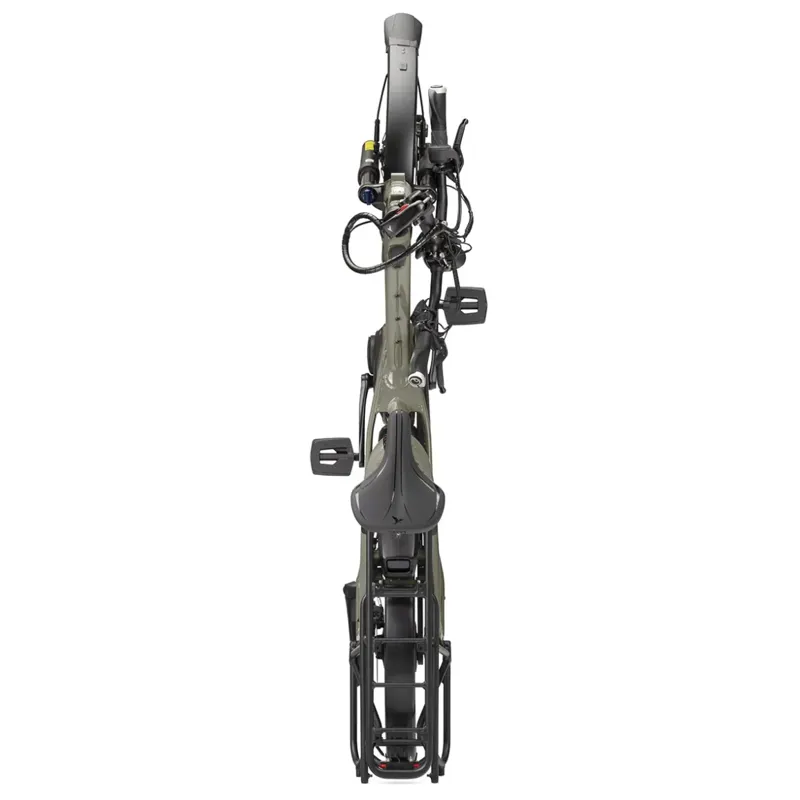

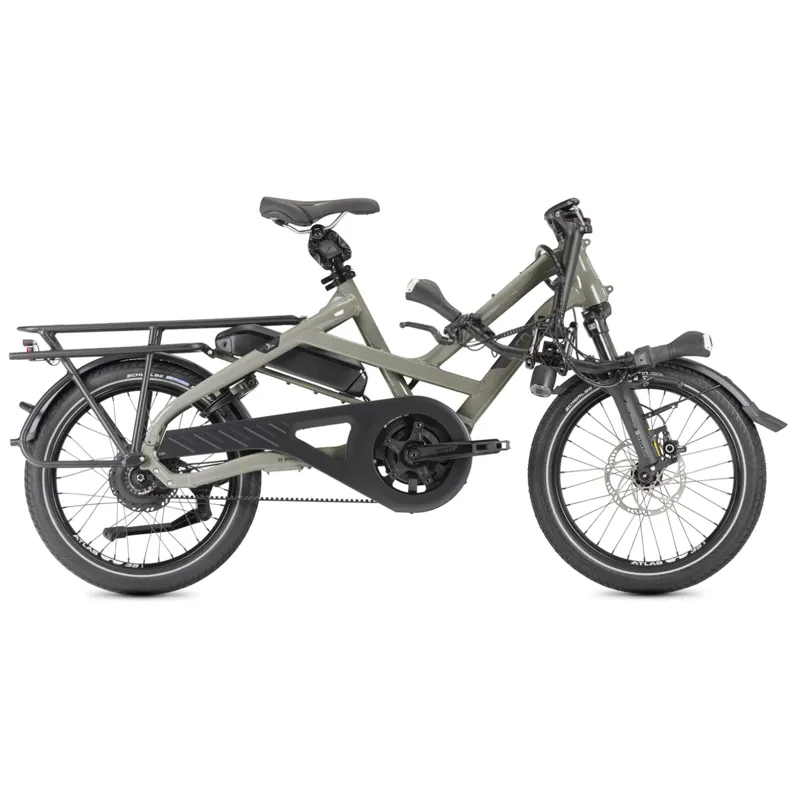

    • FOLDING SIZE:
      165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
    • FOLDING TIME:
      5 seconds
    • FRAME SIZES:
      One size
    • DISTANCE: SEATPOST TO HANDLEBAR:
      52 - 62.5 cm (20.5 - 24.6 in)
    • DISTANCE: SADDLE TO PEDAL:
      76 - 110 cm (29.9 - 43.3 in)
    • SUGGESTED RIDER HEIGHT:
      150 - 195 cm (59.1 - 76.8 in)
    • MAX GROSS VEHICLE WEIGHT:
      180 kg (396.8 lb)
    • MAX RIDER WEIGHT:
      120 kg (264.6 lb)
    • FRAME
    • FRAME:
      Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
    • FORK:
      Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
    • COCKPIT
    • HANDLEPOST:
      Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
    • STEM:
      Tern Andros, adjustable, forged construction, patented technology
    • HEADSET:
      Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
    • HANDLEBAR:
      Tern Sweep, 6061-AL, Tern Andros adapted
    • GRIPS/BAR TAPE:
      Ergon
    • SADDLE:
      Tern Upright by Velo

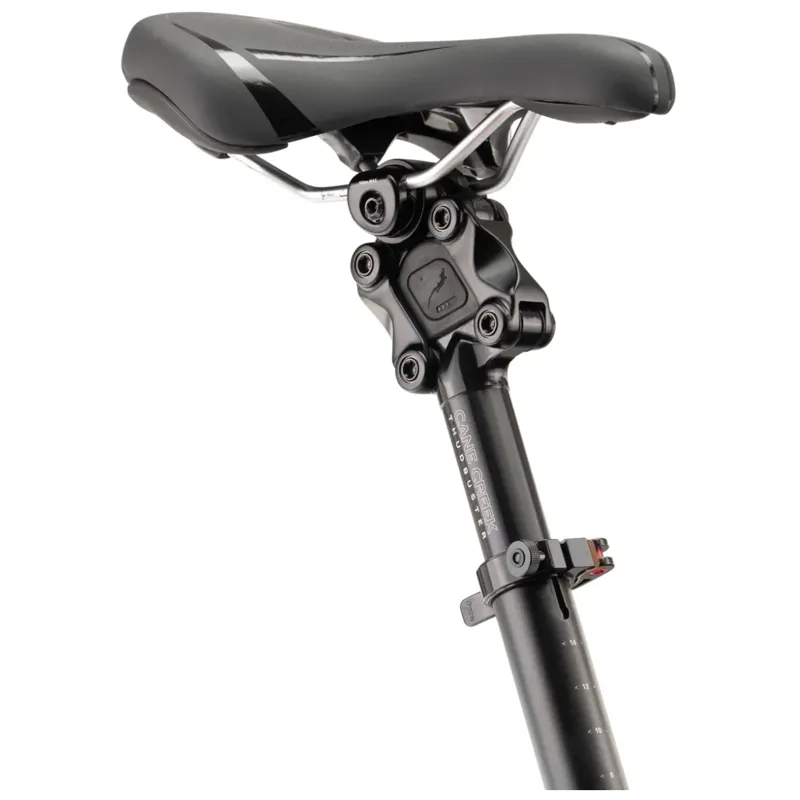

    • SEATPOST:
      Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
    • SEATPOST CLAMP:
      Tern Collar
    • BRAKES
    • FRONT BRAKE:
      Magura MT4, hydraulic disc, 180 mm rotor
    • REAR BRAKE:
      Magura MT4, hydraulic disc, 160 mm rotor
    • BRAKE LEVERS:
      Magura MT4 e-stop, hydraulic, with brake light sensor
    • BRAKE CABLE & HOUSING:
      Magura, hydraulic
    • WHEELS
    • FRONT WHEEL:
      Tern Atlas H, cargo wheel
    • REAR WHEEL:
      Tern Atlas H, cargo wheel
    • FRONT HUB:
      Novatec, Thru-axle, sealed bearings
    • REAR HUB:
      Enviolo Heavy Duty, 380% continuously variable range
    • SPOKES AND NIPPLES:
      Stainless steel, double-butted
    • RIMS:
      Tern Atlas H, wide 35 mm
    • TYRES:
      Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
    • TRANSMISSION
    • SHIFTER(S):
      Enviolo, Twist
    • CRANKSET:
      Tern HSD custom, Gates CDX CNC machined beltring
    • CASSETTE/FREEWHEEL:
      Gates CDX, precision CNC machined cog
    • BOTTOM BRACKET:
      Motor integrated
    • CHAIN:
      Gates Carbon Drive CDX belt
    • PEDALS:
      Urban with non-slip surface, sealed bearings
    • E-SYSTEM
    • MOTOR:
      Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

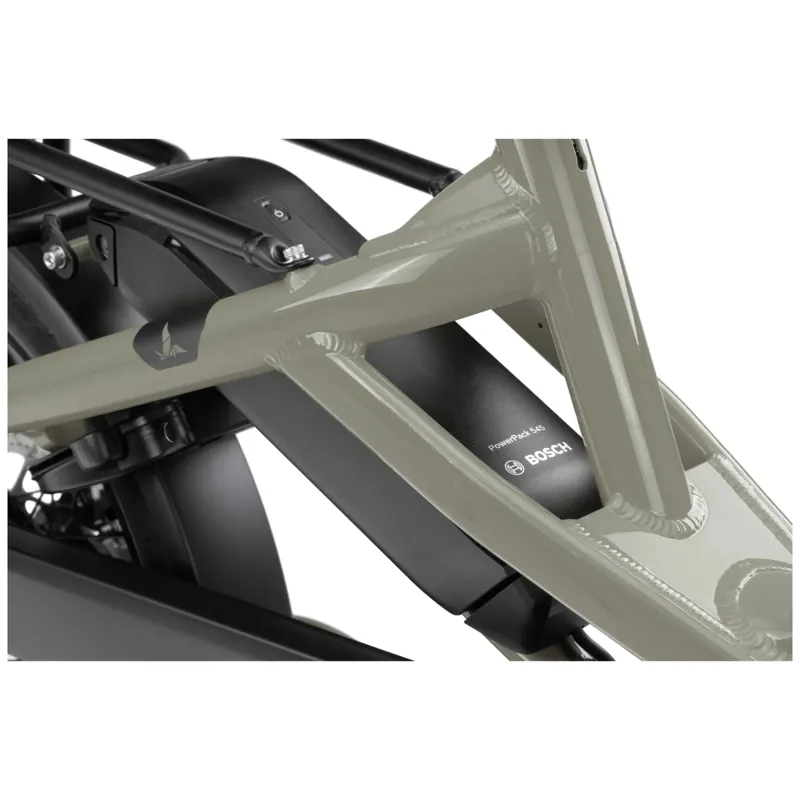

    • BATTERY:
      Bosch PowerPack 545
    • DISPLAY:
      Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
    • LOCK & ALARM:
      Bosch Connect Module, GPS/GSM connectivity; 1 year free cell connectivity, Anti-theft alarm
    • RANGE:
      545 Wh: 51-121 km (32-76 mi)
    • CHARGER:
      220V, 4A (UK/EU)
    • BELLS & WHISTLES
    • BELL:
      Pitch Plus, brass

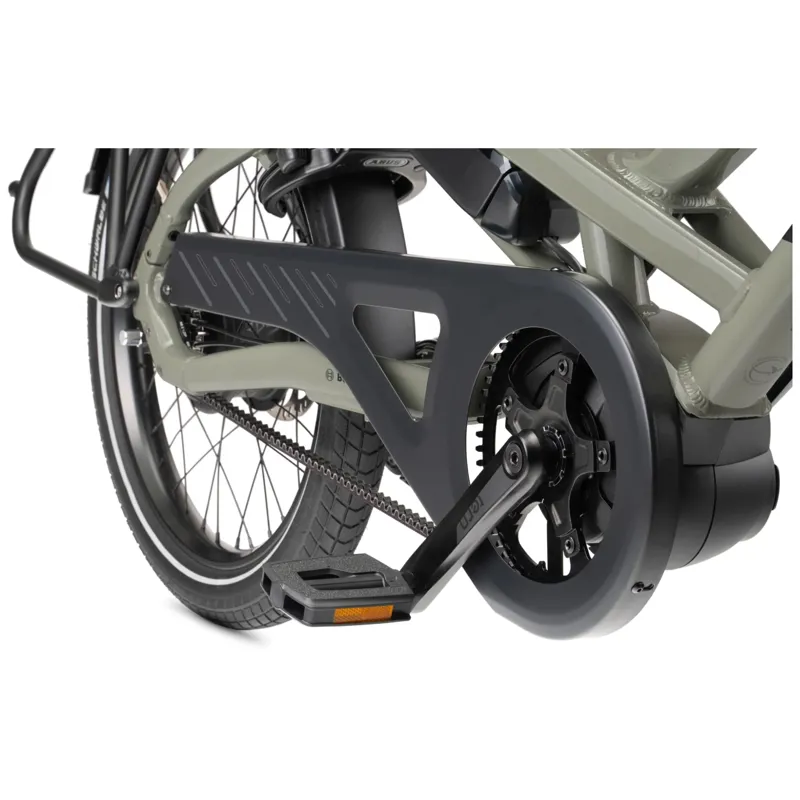

    • CHAINGUARD:
      Tern Custom, full chain cover
    • KICKSTAND:
      Ursus, rear mount
    • LUGGAGE SOCKET:
      Combo Mount
    • FRONT LIGHT:
      Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

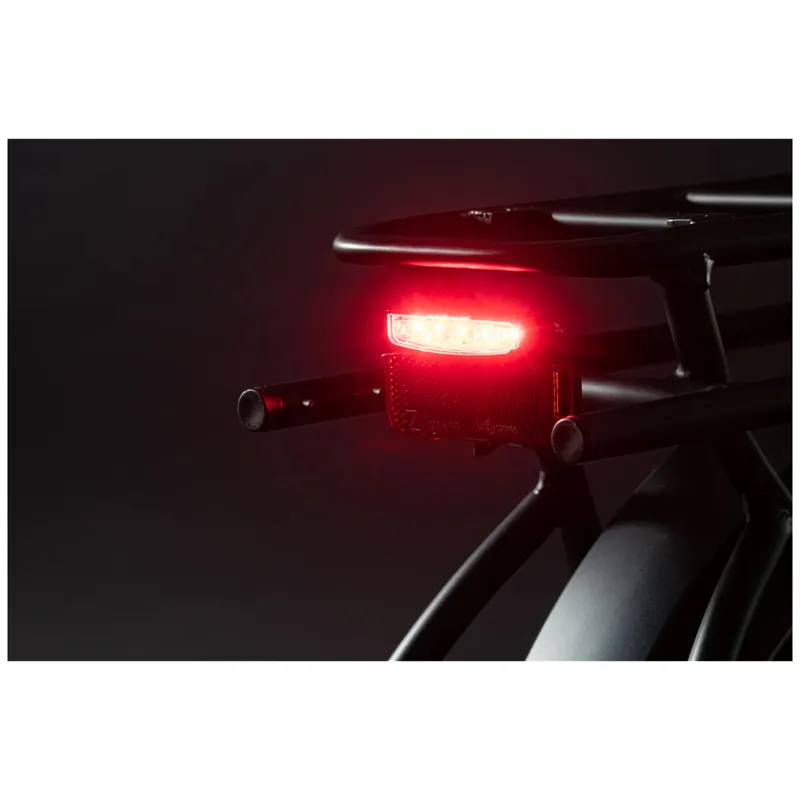

    • REAR LIGHT:
      RearStop Brake Light, Always on
    • MUDGUARDS:
      SKS, stainless hardware

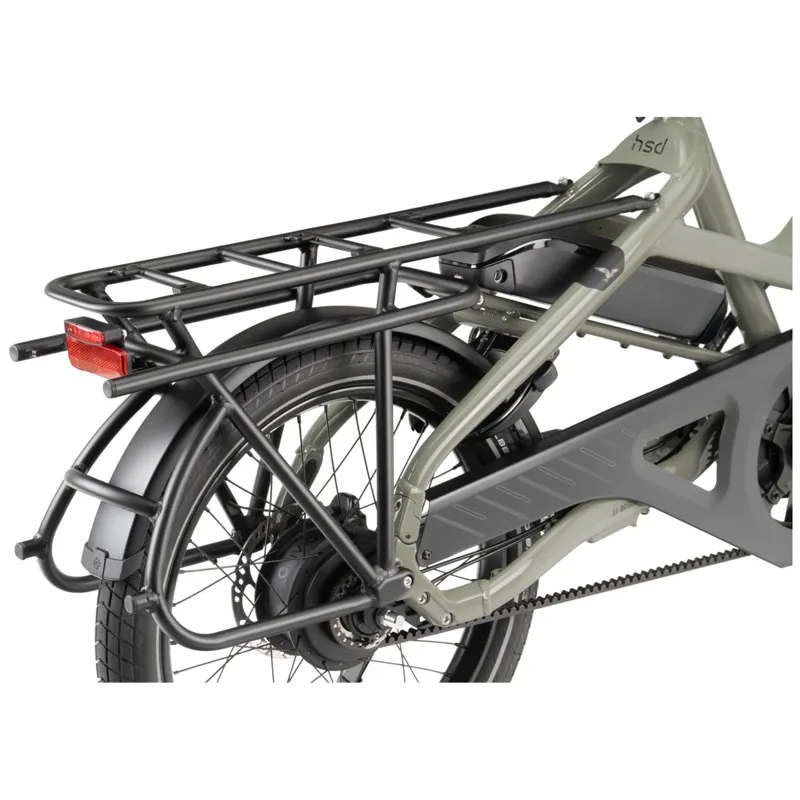

    • RACK(S):
      Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
    • FRAME LOCK:
      ABUS, keyed-alike with Bosch battery

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
