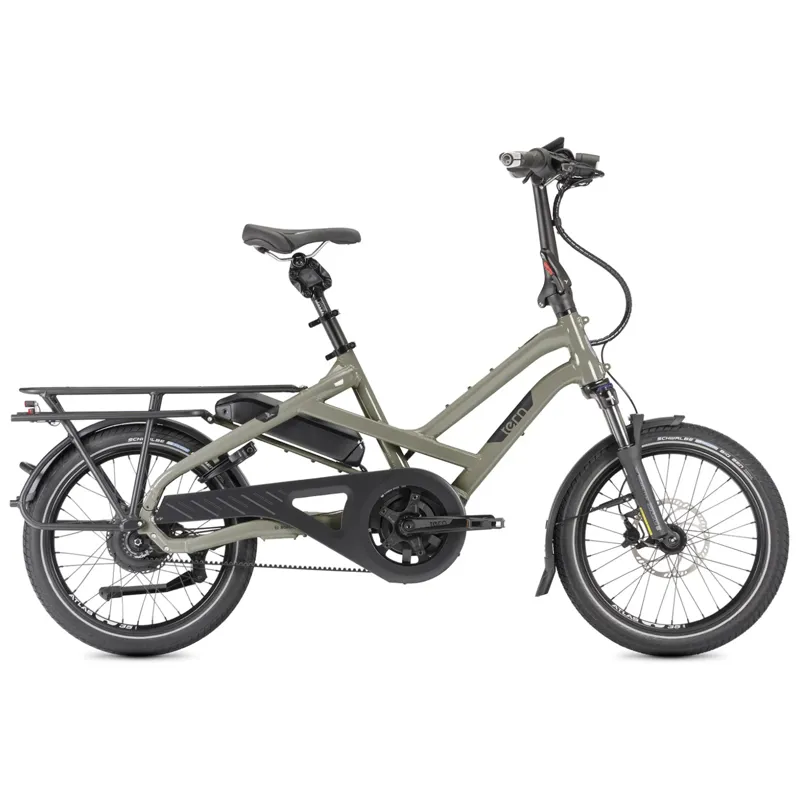

TERN HSD S00 with Bosch Performance Line Motor in Dark Sage

Season:2024

Brand:Tern

Code:810067160964

Mighty But Mini

The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.


What makes it an S00?

  • Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedalling power by up to 340%
  • Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking

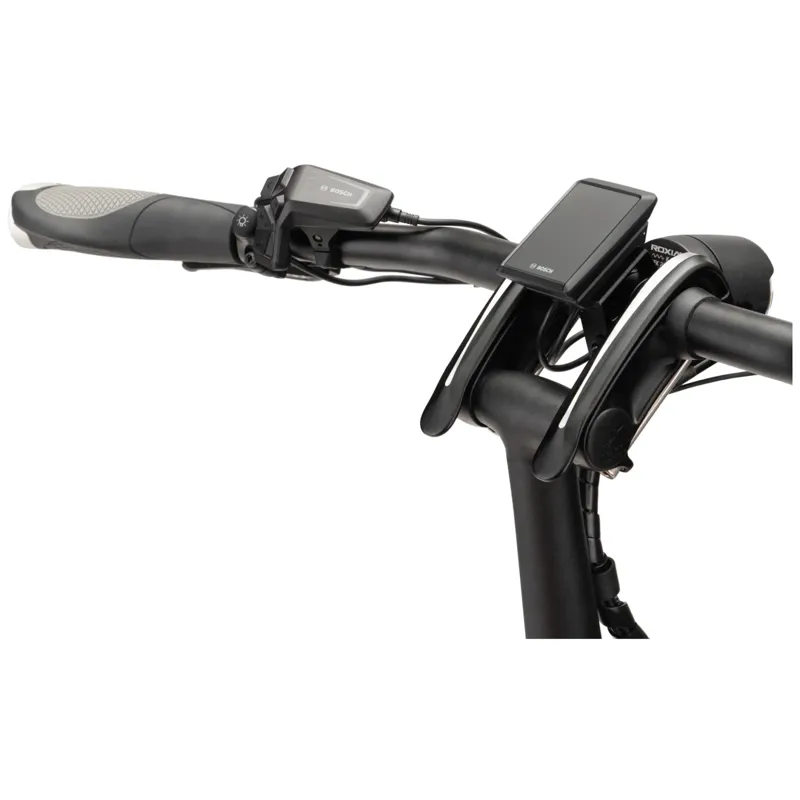

  • Kiox 300 colour display that automatically activates eBike Lock when removed from the bike

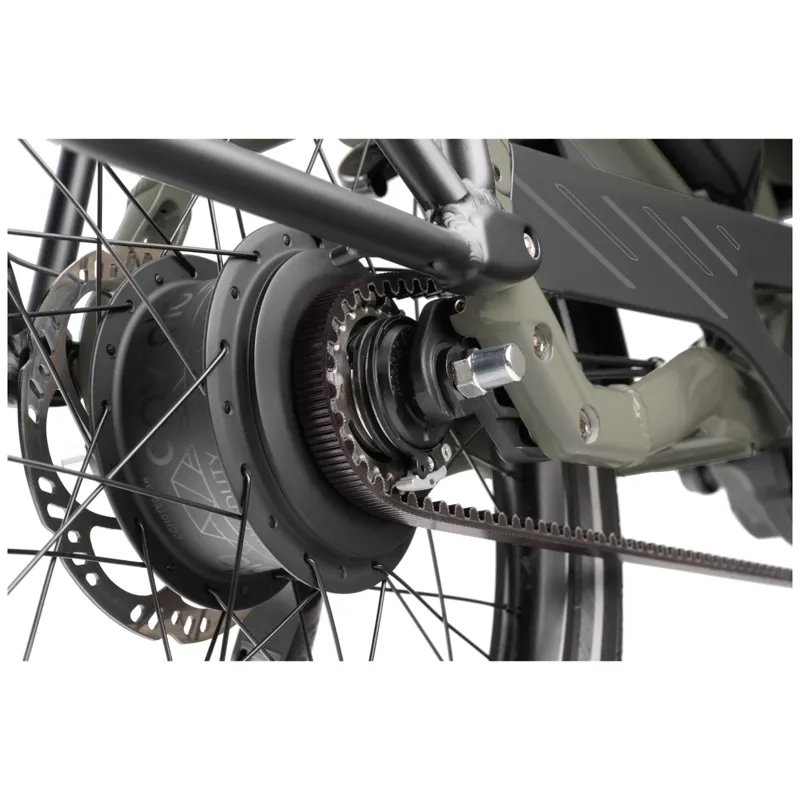

  • Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
  • Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter

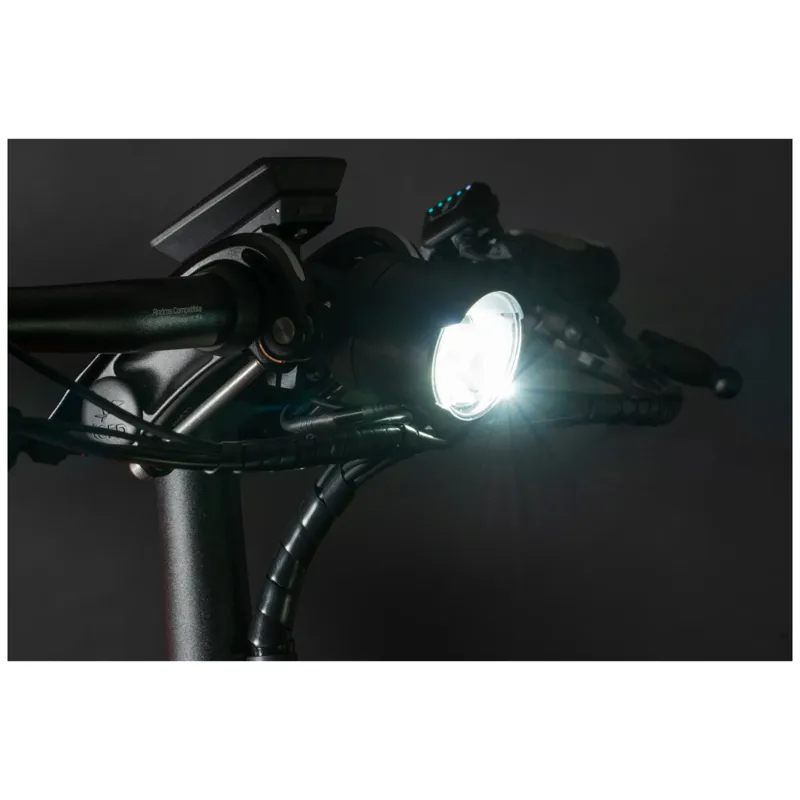

  • Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather

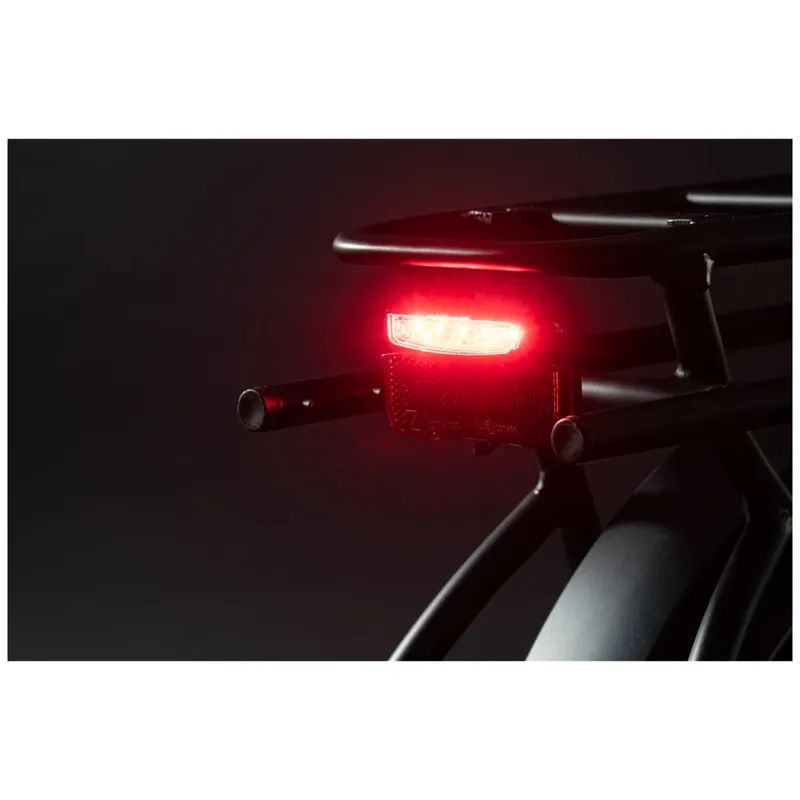

  • Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights

  • Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customise riding modes, view bike information, connect to dealers, and more!
  • Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Technical Information
    • GENERAL INFO
    • SPEEDS:
      ∞
    • WEIGHT:
      29.4 kg (64.8 lb)
    • GEAR INCHES:
      28" - 106" (2.23 - 8.47 m)

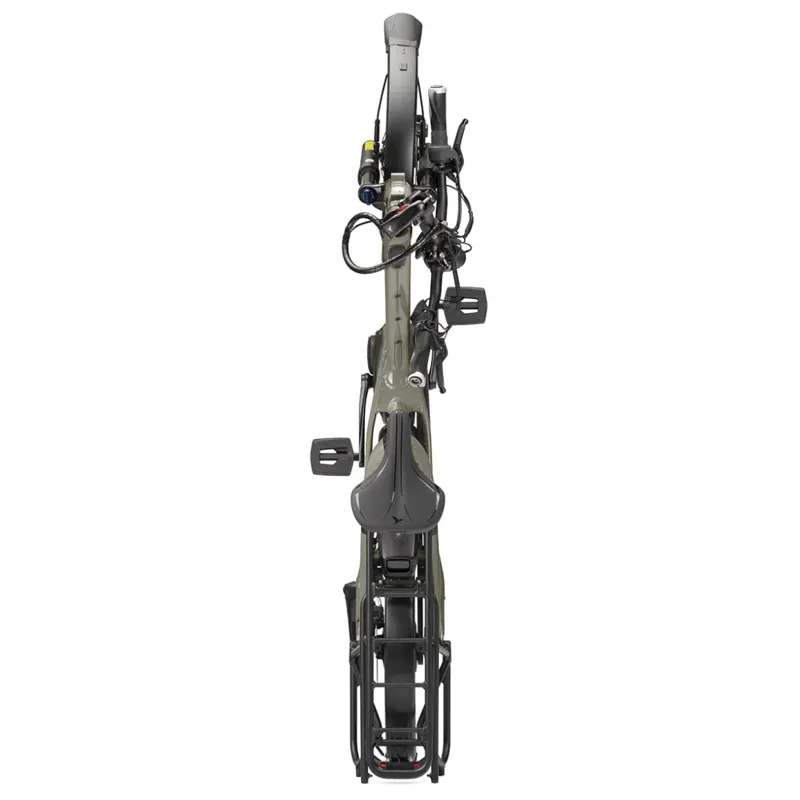

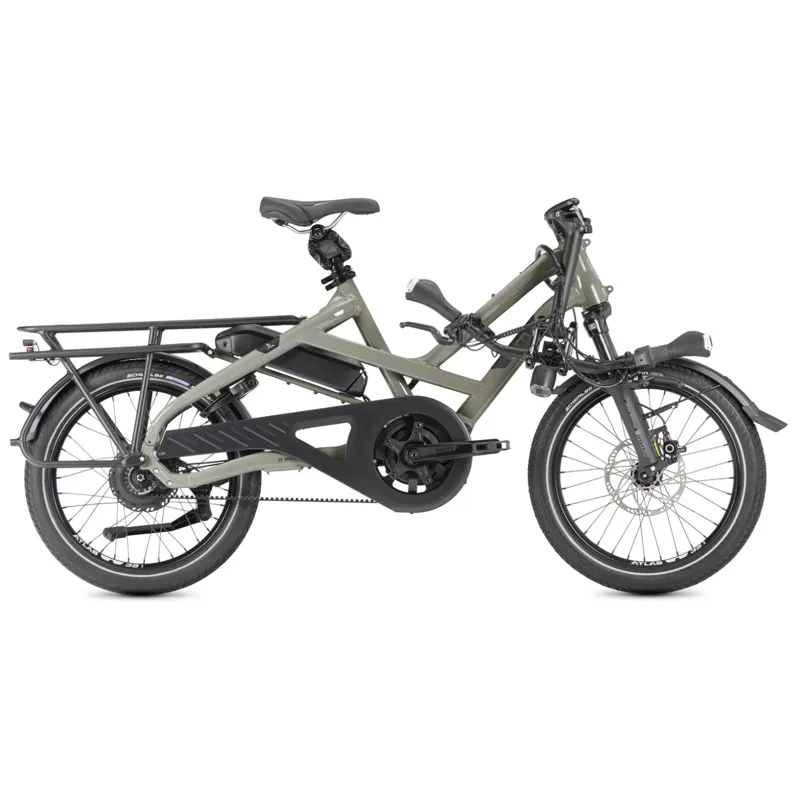

    • FOLDING SIZE:
      165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
    • FOLDING TIME:
      5 seconds
    • FRAME SIZES:
      One size
    • DISTANCE: SEATPOST TO HANDLEBAR:
      52 - 62.5 cm (20.5 - 24.6 in)
    • DISTANCE: SADDLE TO PEDAL:
      76 - 110 cm (29.9 - 43.3 in)
    • SUGGESTED RIDER HEIGHT:
      150 - 195 cm (59.1 - 76.8 in)
    • MAX GROSS VEHICLE WEIGHT:
      180 kg (396.8 lb)
    • MAX RIDER WEIGHT:
      120 kg (264.6 lb)
    • FRAME
    • FRAME:
      Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
    • FORK:
      Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
    • COCKPIT
    • HANDLEPOST:
      Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
    • STEM:
      Tern Andros, adjustable, forged construction, patented technology
    • HEADSET:
      Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
    • HANDLEBAR:
      Tern Sweep, 6061-AL, Tern Andros adapted
    • GRIPS/BAR TAPE:
      Ergon
    • SADDLE:
      Tern Upright by Velo
    • SEATPOST:

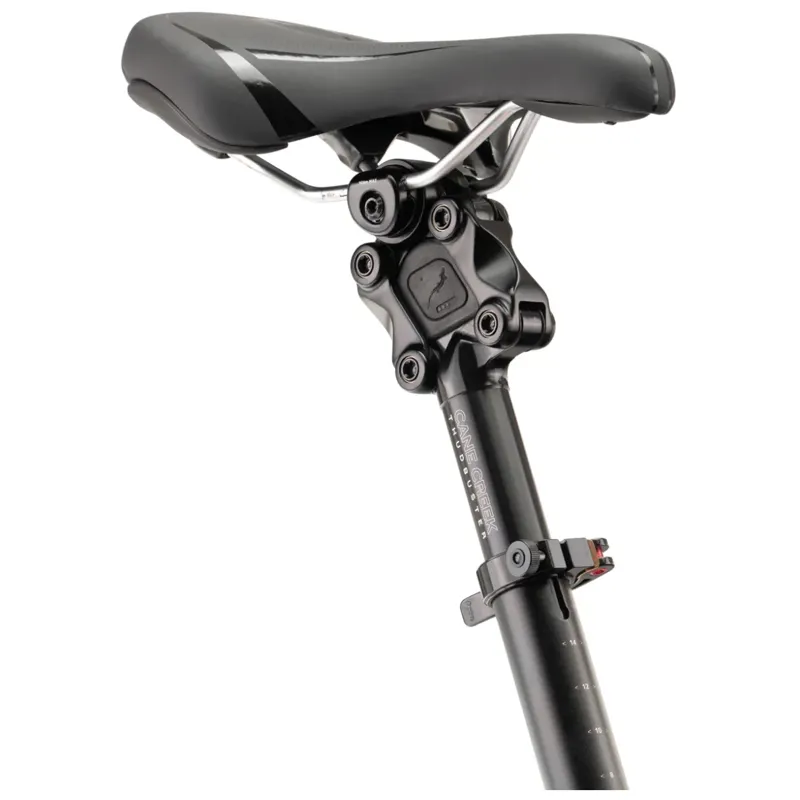

      Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
    • SEATPOST CLAMP:
      Tern Collar
    • BRAKES
    • FRONT BRAKE:
      Magura MT4, hydraulic disc, 180 mm rotor
    • REAR BRAKE:
      Magura MT4, hydraulic disc, 160 mm rotor
    • BRAKE LEVERS:
      Magura MT4 e-stop, hydraulic, with brake light sensor
    • BRAKE CABLE & HOUSING:
      Magura, hydraulic
    • WHEELS
    • FRONT WHEEL:
      Tern Atlas H, cargo wheel
    • REAR WHEEL:
      Tern Atlas H, cargo wheel
    • FRONT HUB:
      Novatec, Thru-axle, sealed bearings
    • REAR HUB:
      Enviolo Heavy Duty, 380% continuously variable range
    • SPOKES AND NIPPLES:
      Stainless steel, double-butted
    • RIMS:
      Tern Atlas H, wide 35 mm
    • TYRES:
      Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
    • TRANSMISSION
    • SHIFTER(S):
      Enviolo, Twist
    • CRANKSET:
      Tern HSD custom, Gates CDX CNC machined beltring
    • CASSETTE/FREEWHEEL:
      Gates CDX, precision CNC machined cog
    • BOTTOM BRACKET:
      Motor integrated
    • CHAIN:
      Gates Carbon Drive CDX belt
    • PEDALS:
      Urban with non-slip surface, sealed bearings
    • E-SYSTEM
    • MOTOR:

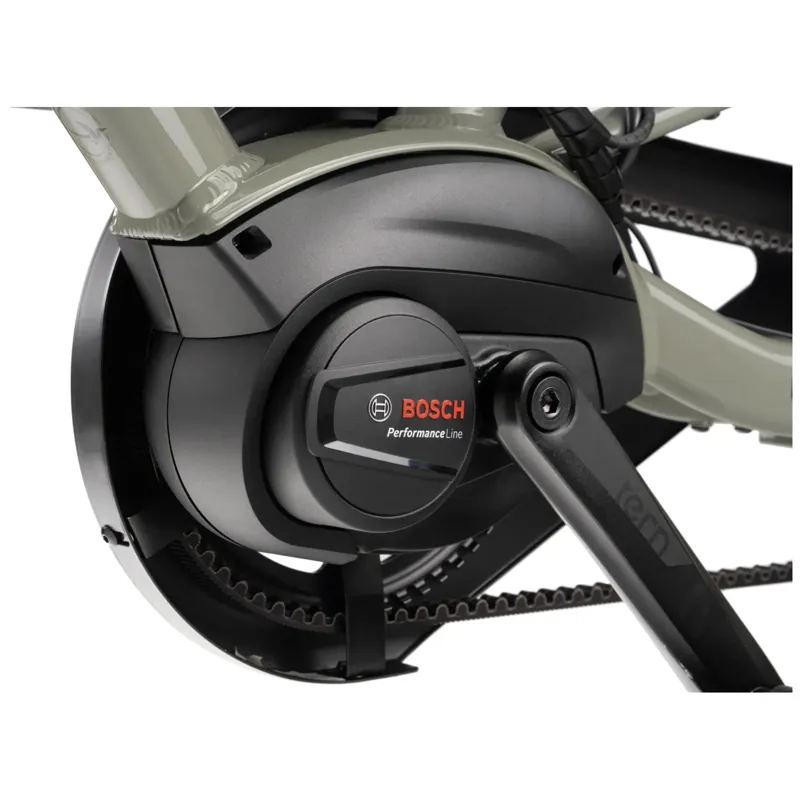

      Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
    • BATTERY:
      Bosch PowerPack 545
    • DISPLAY:
      Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
    • LOCK & ALARM:
      Bosch Connect Module, GPS/GSM connectivity; 1 year free cell connectivity, Anti-theft alarm
    • RANGE:
      545 Wh: 51-121 km (32-76 mi)
    • CHARGER:
      220V, 4A (UK/EU)
    • BELLS & WHISTLES
    • BELL:
      Pitch Plus, brass

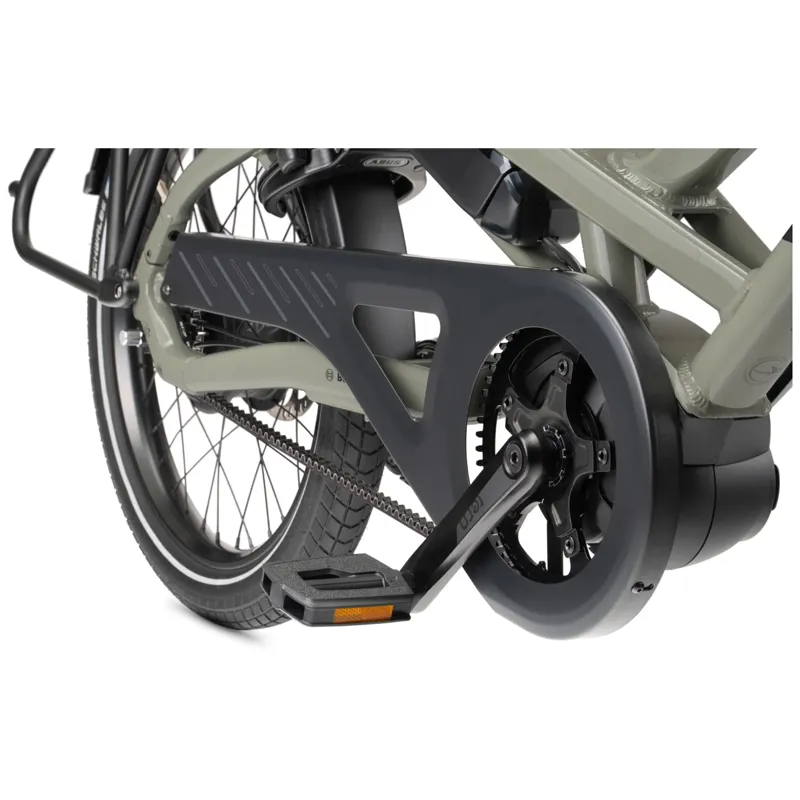

    • CHAINGUARD:
      Tern Custom, full chain cover
    • KICKSTAND:
      Ursus, rear mount
    • LUGGAGE SOCKET:
      Combo Mount
    • FRONT LIGHT:
      Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
    • REAR LIGHT:
      RearStop Brake Light, Always on
    • MUDGUARDS:
      SKS, stainless hardware
    • RACK(S):

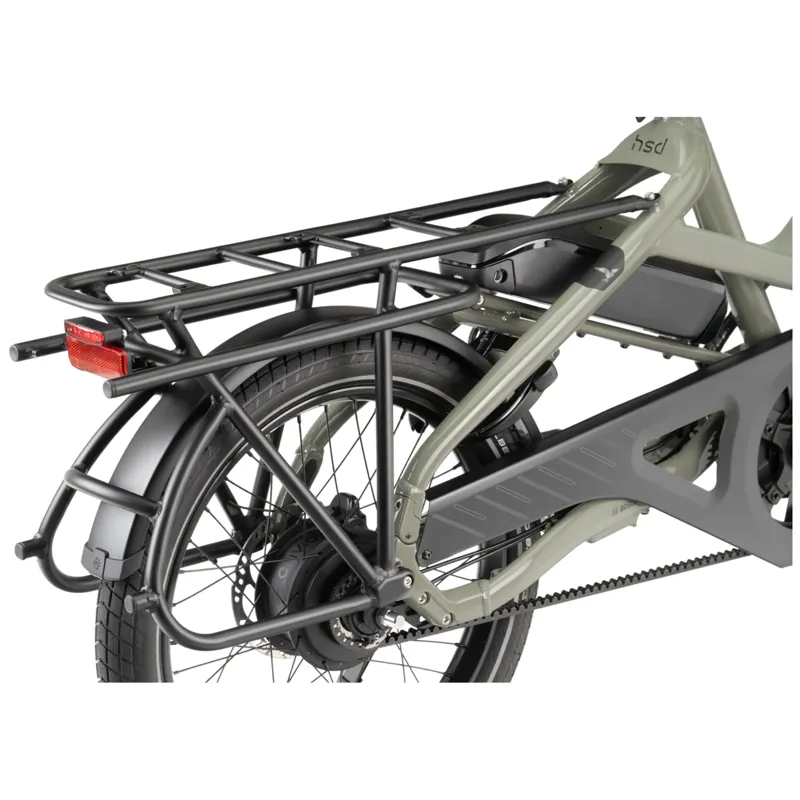

      Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
    • FRAME LOCK:
      ABUS, keyed-alike with Bosch battery

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
